Japan
LED displays — outdoor DOOH to boardroom
Two complementary lines: the ultra-light Freeman series for outdoor advertising networks, and flip-chip COB all-in-one displays for meetings, retail and venues. Over 10,000 m² of Vistaplus LED has been installed across Japan, including major stadiums, airports, retail landmarks and broadcast studios.
Outdoor LED · For DOOH
Freeman series
An ultra light & thin full-colour outdoor LED display built for advertising networks: high brightness, IP65 protection, front and rear access for fast servicing, and a mounting system that cuts steelwork cost dramatically.
- Ultra light — 25.9 kg/m² with frame; module just 4.1 kg
- High brightness — 5,000 nits, readable in direct sunlight
- IP65 — front and rear, built for permanent outdoor duty
- Fast installation — front & rear access, fast locks, 2-in-1 cable
- Low framework cost — mounts directly on the wall, no extra steel
- Energy saving — 4.2 V drive cuts power up to 30%
Why Freeman costs less to run
Light to ship, cheap to mount, thrift to power
⚖
Light-weighted
Display weight 25.9 kg/m² including frame. A single 640×320 mm module weighs about 4.1 kg — saving storage and transportation costs.
⌂
Low framework cost
Two aluminium extrusion fixing supports (3-in-1 and 1-in-1) let Freeman mount directly on the wall — no additional structural components required.
⚡
30% power saving
4.2 V driving: average 200 W/m², maximum 520 W/m² — versus 300/740 W/m² for a regular product. Lower heat, longer LED life.
🔩
High integration
Module comes with its control box; data & power run in one 2-in-1 cable. Fast locks in the rear make front and rear access effortless.
☀
Built for sunlight
5,000 nits brightness, 110°/110° viewing angle, 6,500–8,000 K colour temperature and 13-bit grey scale for smooth gradients outdoors.
❄
All-season duty
Operating temperature −20 °C to +50 °C with IP65 protection — from northern winters to coastal humidity.
Specification
Freeman-P5 module
| Item | Freeman-P5 |
|---|---|
| Pixel pitch | 5 mm |
| LED | SMD1912 |
| Pixel density | 40,000 dot/m² |
| Module resolution | 128 × 64 |
| Module size | 640 × 320 mm |
| Driving mode | 1/8 scan |
| Working voltage | 4.2 V |
| Module power | 105 W |
| Max / avg power | 520 W/m² / 200 W/m² |
| Brightness | 5,000 nits |
| Refresh rate | ≥ 3,840 Hz |
| Grey scale | 13 bits |
| Viewing angle | 110° / 110° |
| Colour temperature | 6,500–8,000 K |
| Working temperature | −20 °C to +50 °C |
| IP rate | IP65 |
Other pitches and custom sizes available on request.
1-in-1 frame
Frame weight 1.4 kg — the lightest option.
3-in-1 frame
Frame weight 3.5 kg — three modules per frame.
Indoor LED · All-in-One

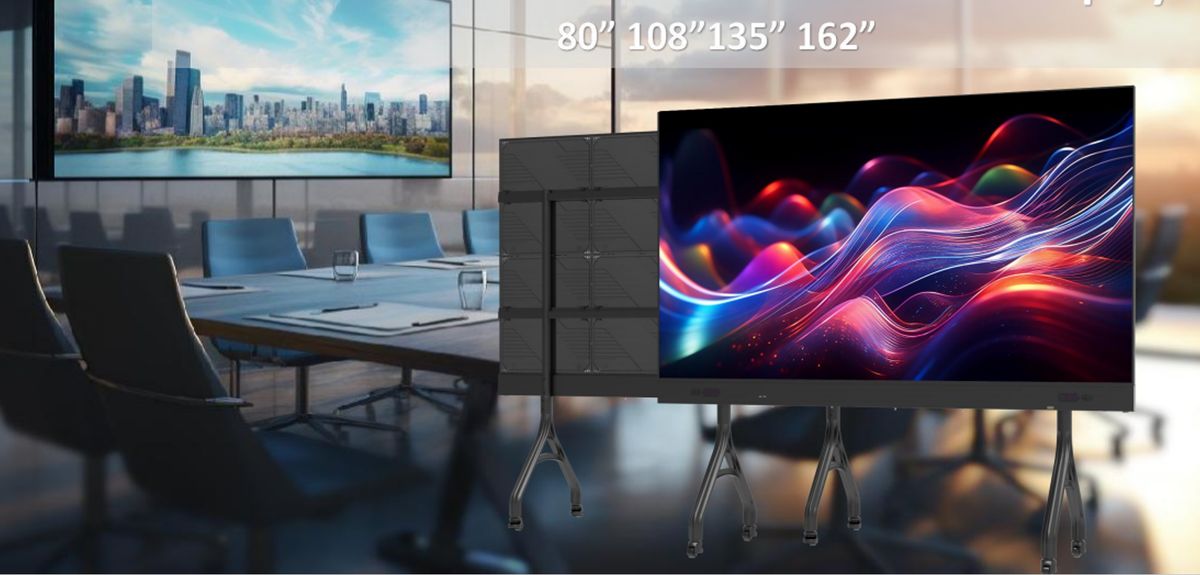

COB all-in-one display
Flip-chip COB technology in a single 16:9 cabinet: DCI-P3 colour gamut, 10,000:1 contrast and a cinema-grade picture for meetings, showrooms, bars and home theatres. Sizes from 55" to 162", 2K or 4K.
- Dual system — Android and Windows 10, switchable
- Interactive touch — 20-point multi-touch, 1 mm precision, 9 ms response
- Wireless casting — PC / phone / tablet, up to 4 split screens
- Cinema sound — stereo surround, camera & microphone ready
- Flexible install — wall mounting or mobile stand
- Eye-comfort — low blue light, flicker-free, energy saving
Specification
COB all-in-one — 2K & 4K
| 2K resolution | 55" | 80" | 108" | 135" | 162" |
|---|---|---|---|---|---|
| Pixel pitch | P0.625 | P0.9375 | P1.25 | P1.56 | P1.875 |
| Screen size (mm) | 1200×675 | 1800×1012 | 2400×1350 | 3000×1687 | 3600×2025 |
| Resolution | 1920 × 1080 | ||||
| Attendance | 10–20 | 20–40 | 30–80 | 60–100 people | |
Recommended room: 15–100 m² depending on size.
| 4K resolution | 108" | 135" | 162" |
|---|---|---|---|
| Pixel pitch | P0.625 | P0.78 | P0.9375 |
| Screen size (mm) | 2400×1350 | 3000×1687 | 3600×2025 |
| Resolution | 3840 × 2160 | ||
| Attendance | 30–80 | 60–100 people | |
Common specification: brightness 100–600 nit (adjustable) · contrast 10,000:1 · viewing angle 160° · AC 100–240 V · Android / Windows 10 · HDMI, USB and audio expansion.
Wisdom Conference
Direct casting from phone, tablet and PC with a dedicated secure sender, digital whiteboard and multi-person meetings.
Music Restaurant / Bar / KTV
Low brightness with high grey scale stays accurate in dark rooms; supports interaction, casting and on-screen captions.
Home Theatre
Ultra HD lossless audio/video transmission for a true cinema-grade experience at home.
Project references
Installed where the crowd is
Over 10,000 panels installed at 88 locations — stadiums, stations, airports, landmark retail and media facades, with full case details on our case studies page.

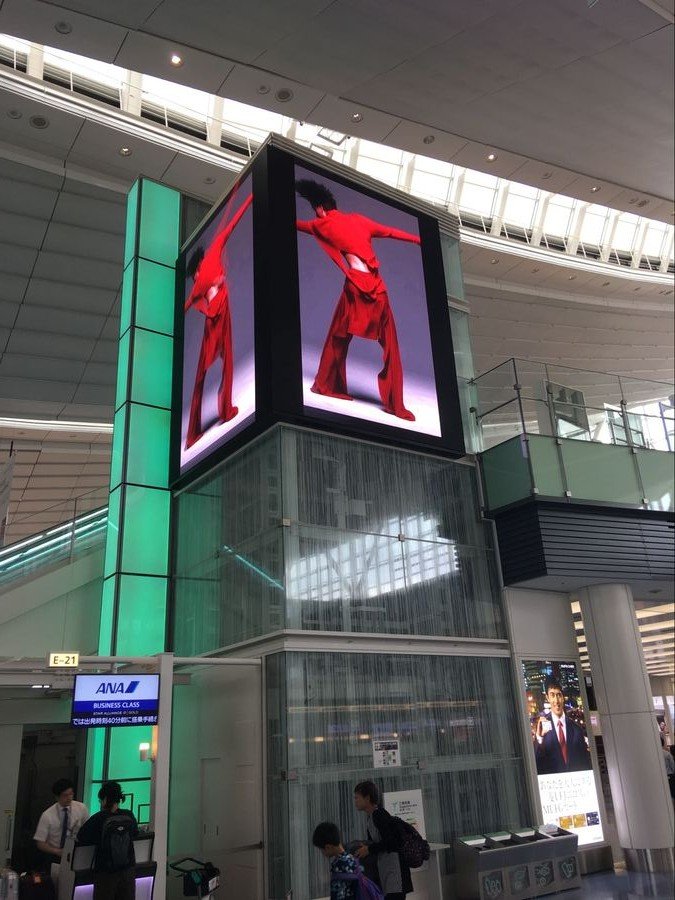

Japan
LED display in airport

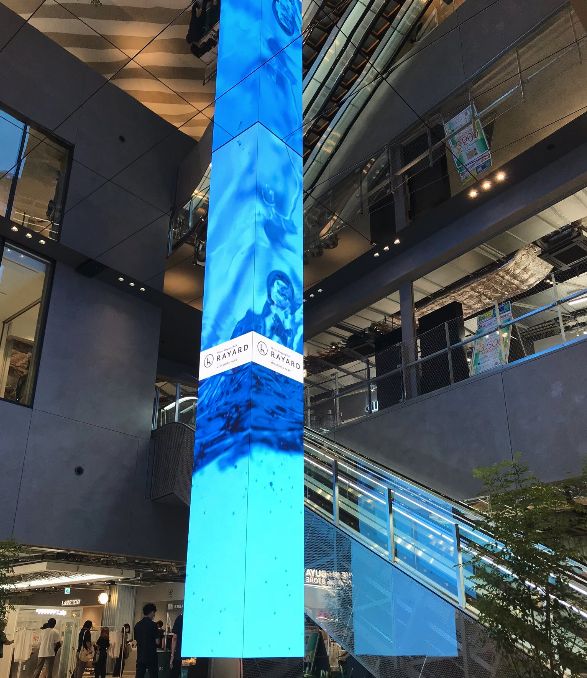

Japan
Fine-pitch LED
Japan
LED wall

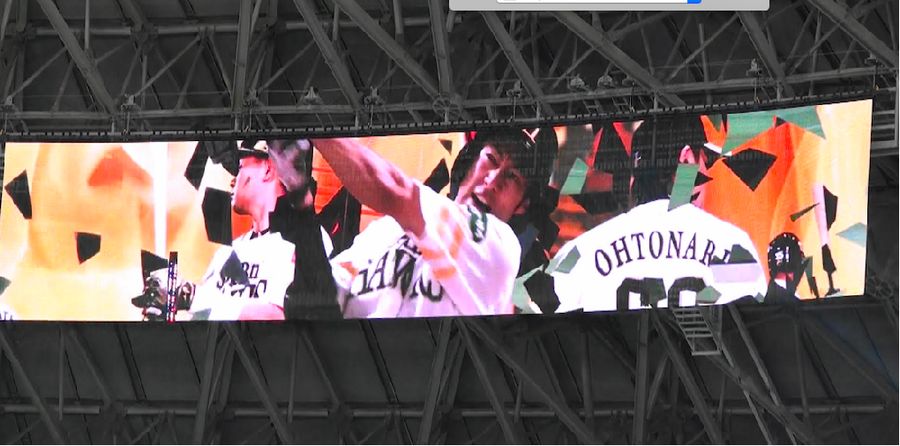

Stadium · Outdoor P25
Yahoo Stadium
Cinema · Outdoor P10
